Explain the Significance of Binary Data

Controlled devices generally contain registers that are made up of binary digits (bits). The following illustration shows how these registers can be used to control a device.

Example

2299_Binary data.png

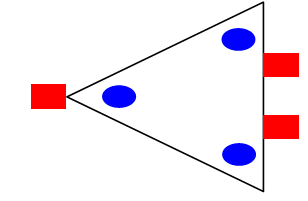

Device on the left is a mobile trolley with 3 wheels. All three wheels can turn right or left and every wheel has its own electric driving motor. Sensors at the rear and front of the trolley detect an object in its path that would subsequently stop all movement. An 8-bit register is used to control the device.

1356_Binary data.png
