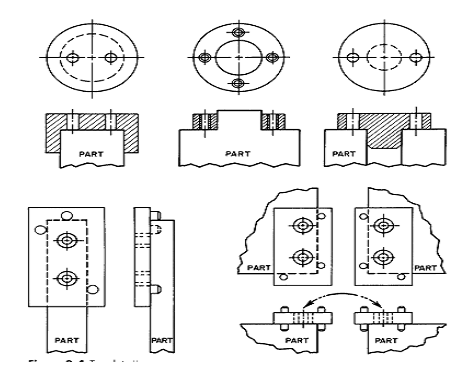

Explain Template Jig?

1) Template jig is the simplest type of jig, employed for accuracy than speed.

2) This jig fits over, on, or, into the work and is not generally clamped.

3) This type jig is appropriate if only a few parts are to be made.



717_Explain Template Jig.png
