Q. Explain Generating mode of rotating machines?

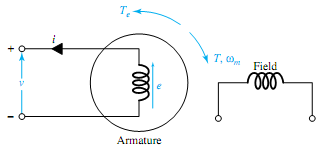

The generating mode has mechanical power input and electric power output. The torque T applied externally to the shaft drives the machine against the electrically developed torque Te. The generated emf e drives current out of the winding against the terminal voltage v.

1653_Explain Generating mode of rotating machines.png
