Calculate the maximum analog output voltage, Electrical Engineering

Assignment Help:

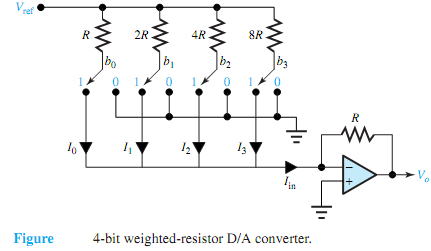

Q. For the 4-bit D/A converter of Figure, calculate:

(a) The maximum analog output voltage.

(b) The minimum analog output voltage.

(c) The smallest detectable analog output voltage when Vref =-10 V.

1278_Calculate the maximum analog output voltage.png
