Explain about the eccentrically loaded footings, Mechanical Engineering

Assignment Help:

Explain about the eccentrically loaded footings.

ECCENTRICALLY LOADED FOOTINGS

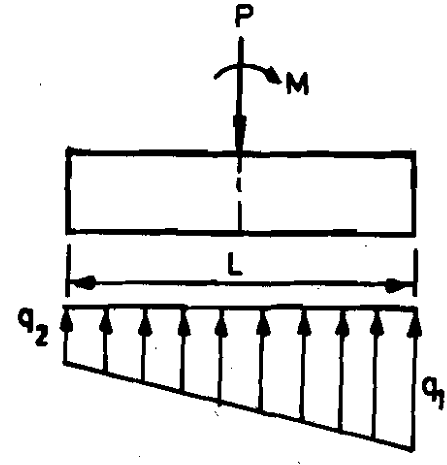

When footings have overturning moments and axial loads, the base pressure under the footing will be non-uniform. In simplified rigid body approach, the base pressure will vary from a maximum value of q, and a minimum value of q, as demonstrated in figure.

1409_Eccentrically Loaded Footings.png

Eccentrically Loaded Footings
