Draw an e_r model in oracle, Database Management System

Assignment Help:

Draw an E_R Model for the following:

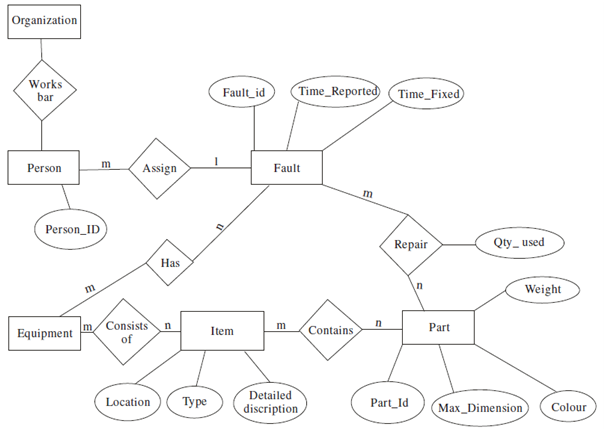

An organization uses number of items of a equipment to generates goods. Each item is at one LOCATION, of one TYPE and has a DETAILED_DISCRIPTION. Faults on the equipment are identified through a unique FAULT_ID and are reported at a TIME_REPORTED. Any number of persons may be assigned to a fault and work on the fault until it is fixed. The TIME_FIXED is recorded as is the TIME_SPENT through each person on a fault. Any number of elements may be used to repair a fault. The QTY_USED of each part is recorded against the fault. Each part is identified through a PART_ID and has a given weight and MAX_DIMENSION and can have any number of colors.

2195_ER diagram1.png


Related Discussions:- Draw an e_r model in oracle

Datawarehouse, Define a job scheduling strategy that will meet business req...

Define a job scheduling strategy that will meet business requirement of reporting availability by 6am CST for the following cubes? Show the job scheduling dependencies in a pictori

Query to list the employee name have 10000 salary, Consider employee table ...

Consider employee table of (i) and list names of department(s) for which average salary for department is more than 10,000. (SELECT d_name FROM dept WHERE d_code IN (SELECT d_c

What is serialization and where it is used, What is serialization? Where it...

What is serialization? Where it is used and why?  Serialization is a basic term used for mechanisms which enable objects and object structures to be converted into portable for

Structure of the ldb, Though all the ABAP/4 Dictionary Structures that exis...

Though all the ABAP/4 Dictionary Structures that exists in the structure of the LDB, being described in Database Program, we are explaining the Dictionary Structures in the Report.

Determine the un-normalized form, Un-Normalized Form (UNF) If a table h...

Un-Normalized Form (UNF) If a table having non-atomic values at every row, it is said to be in UNF. An atomic value is something that cannot be further decomposed. A non-atomic

What is the use of group by clause, What is the use of group by clause? ...

What is the use of group by clause? Group by clause is used to be relevant aggregate functions to a set of tuples. The attributes given in the group by clause are used to shape

Software failures-database recovery and security, Software failures :  In s...

Software failures :  In such cases, a software error abruptly stops the implementation of the current transaction (or all transactions), therefore leading to losing the state of pr

Describe file organisation, Describe file organisation? A file is organ...

Describe file organisation? A file is organized logically as a sequence of records. These records are mapped onto disk blocks. A) Fixed-Length Records Type deposit=record

Explain weak and strong entity type, Explain weak and strong entity type ? ...

Explain weak and strong entity type ? Weak and Strong entity type: An entity set which does not have a primary key is referred to as a weak entity set. The existence of a wea

Database, A database has been designed for this beauty parlour in order for...

A database has been designed for this beauty parlour in order for the staff to manage specific things such as bookings made by clients, payments, staff availability, level of exper
