Draw an energy diagram, Chemistry

Assignment Help:

Figure states energy differences for the combustion of hydrogen, an exothermic chemical reaction. The combination of oxygen gas and nitrogen gas to form nitrogen monoxide is an example of an endothermic reaction:

1916_Draw an energy diagram.png

Draw an energy diagram for this reaction.

Answer:

Note that in an endothermic reaction, the energy of the products is bigger than the energy of the reactants. The opposite was true for an exothermic reaction.

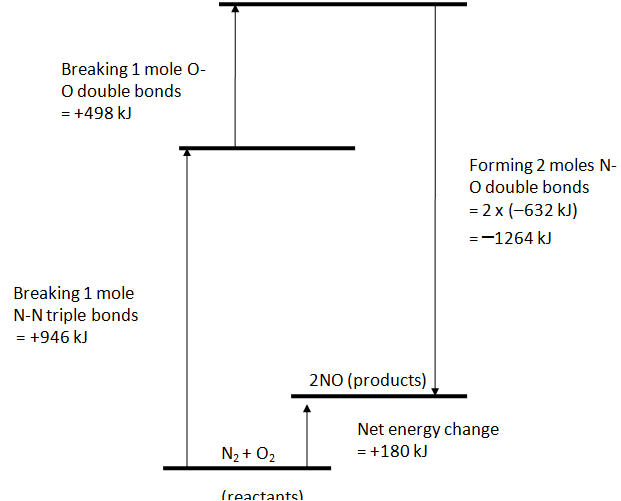

1408_Draw an energy diagram1.png
