Draw a state diagram of 3-bit ripple counter, Electrical Engineering

Assignment Help:

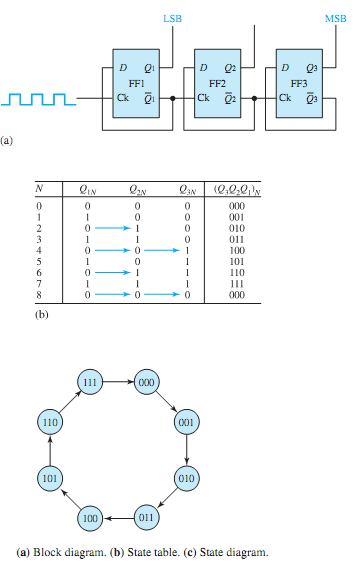

The block diagram for a 3-bit ripple counter is shown in Figure (a). Obtain a state table for the number of pulses N = 0 to 8, and draw a state diagram to explain its operation.

1056_Draw a state diagram of 3-bit ripple counter.png
