To do the division operation R1 ÷ R2, R2 should be a correct subset of R1. In the following example R1 have attributes A and B and R2 have only attribute B so R2 is a correct subset of R1. If we perform R1 ÷ R2 than the resultant relation will have those values of A from R1 that are related to all values of B present in R2.

Example

Let R1

If R2                    R3= R1 ÷ R2                      If R2                       R3= R1 ÷ R2

If R2                  R3= R1 ÷ R2                                               If R2             R3= R1 ÷ R2

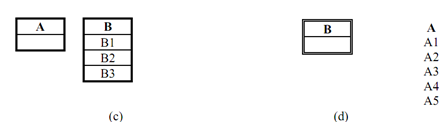

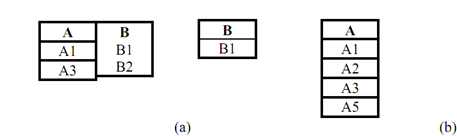

Figure:  The Division Operation

Note:

               Degree of relation: Degree (R ÷ S)=Degree of R - Degree of S.
