Determine vout and the power supplied, Electrical Engineering

Assignment Help:

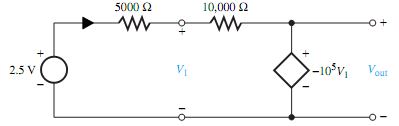

Q. An operational amplifier stage is typically represented by the circuit of Figure. For the values given, determine Vout and the power supplied by the 2.5-V source.
