Determine the transfer function and driving-point impedance, Electrical Engineering

Assignment Help:

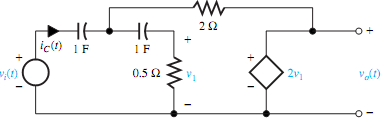

Q. A filter is a network employed to select one range of frequencies while rejecting all other frequencies. A basic building block often used in integrated-circuit filters is shown in Figure.

Determine the following for the circuit:

(a) Transfer function Vo(s)/Vi(s).

(b) Response vo(t) for vi(t) = u(t).

(c) Driving-point impedance Vi(s)/Ii(s).
