Determine the magnitude and nature of the force, Mechanical Engineering

Assignment Help:

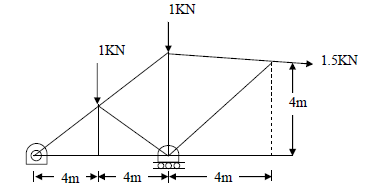

A frame PQRSTU is hinged to a rigid support at P and is simply supported at T. It is loaded as indicated in the figure below. Determine the magnitude and nature of the force in the members PQ and UT.

1955_Determine the magnitude and nature of the force.png
