Determine the line-to-line voltage, Electrical Engineering

Assignment Help:

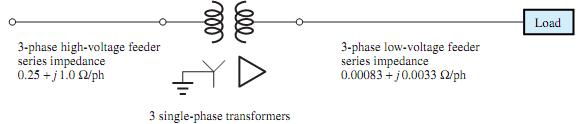

Q. A one-line diagram of a three-phase distribution system is given in Figure. Determine the line-to-line voltage at the sending end of the high-voltage feeder when the transformer delivers rated load at 240 V (line-to-line) and 0.8 lagging power factor.Neglect the exciting current of the transformer.

2269_Determine the line-to-line voltage.png
