Determine the critical load, Mechanical Engineering

Assignment Help:

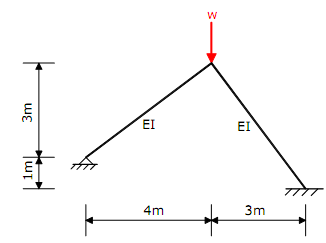

Determine the critical load (Wcrit) to cause elastic instability of the rigidly jointed frame shown in Figure Q2. The frame members have constant bending stiffnesses (EI) as indicated on the figure, where E is the modulus of elasticity and I is the second moment of area.

427_Determine the critical load.png
