Determine the actual absolute velocity, Mechanical Engineering

Assignment Help:

Question:

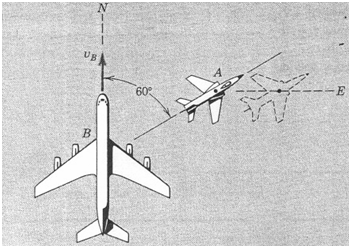

As shown in the figure, the jet transport B is flying north with a velocity VB = 600 Km/h when a smaller aircraft A passes underneath the transport headed in the 60 degree direction shown. To passengers in B, however, A appears to be flying sideways and moving east. Determine the actual absolute velocity of A and the velocity of A appears to have relative to B.

1160_Determine the Actual Absolute Velocity.png
