Define Ways of providing the anti slip device - By Bolting?

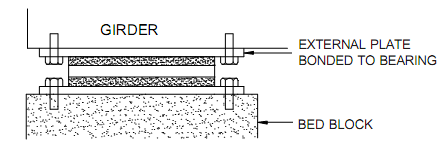

The elastomeric bearing can be vulcanised with a stainless steel outer plate. The stainless steel plate is provided with holes through which anchor bolts can be used for attachment of the bearing to the girder and to the bed block. This method however requires either anchor bolts to be cast along with the girder or dowel holes left in position in the concrete at correct locations. A typical detail of this scheme is shown in Figure.

1484_Define Ways of providing the anti slip device - By Bolting.png
