Current through each resistor for the networking, Electrical Engineering

Assignment Help:

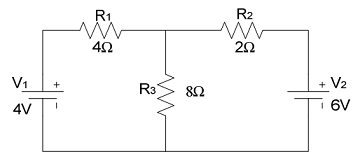

Find the current through each resistor for the networking below using Mesh Analysis and Nodal Analysis.
