Scatter Diagrams - Quality Tools for Improvement

Scatter diagrams are graphical tools which attempt to depict the influence in which one variable has on another. A general diagram of this type commonly displays points representing the observed value of one variable corresponding to the value of another variable.

1436_Scatter Diagrams - Quality Tools for Improvement.png

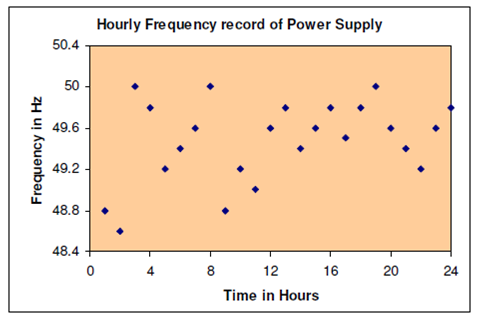

Figure: Scatter Diagram
