Calculate the current through the circuit, Physics

Assignment Help:

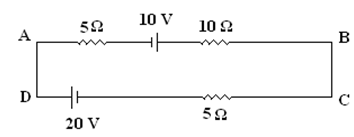

Q. In the given circuit, calculate the current through the circuit and mention its direction.

266_Calculate the current through the circuit1.png

Let the current be I. 5I + 10 I + 5 I = 10 + 20 that is 20 I = 30 Current I = 1.5 A Current flows along the path ABCD.
