Calculate the bandwidth and input-output resistance, Electrical Engineering

Assignment Help:

Using the LM741operational amplifier build a voltage amplifier with the voltage gain of  |AV| = 500 v/v ± = 20%. Measure all necessary parameters of the amplifier (as per deliverables). Then, use the same operational amplifier to build a voltage amplifier with the voltage gain of  |AV| = 10 v/v ± = 20%

Deliverables:

a.) Show the proposed amplifier circuit and your hand calculations of the voltage gain, bandwidth and input/output resistance.

b.) Show the amplifier circuit in PSpice that you have used to evaluate the output resistance of your amplifier.

c.) Show the actual frequency response of your amplifier using NI ELVIS.

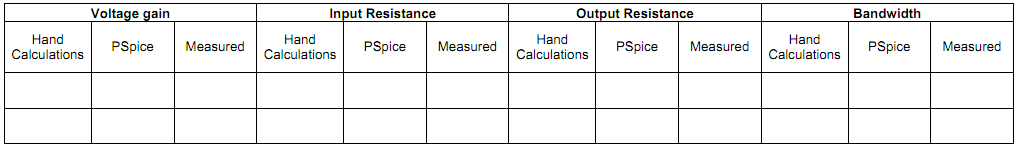

d.) Fill in the following table using the data from your hand calculations, PSpice simulations and actual measurements and present it to your tutor:

1855_Calculate the Bandwidth and Input-Output Resistance.png
