Determine the binary values of the first three samples, Electrical Engineering

Assignment Help:

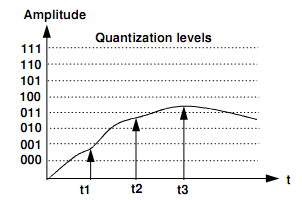

A 3-bit quantizer is utilized to transform the following signal into a binary digital signal. Determine the binary values of the first three samples (assuming the quantizer rounds up)?

1547_Determine the binary values of the first three samples.png

A)  000 010 001

B)  001 011 100

C)  000 011 011

D)  001 011 011
