Bending moment , Civil Engineering

Assignment Help:

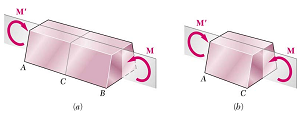

  • The internal forces in any cross-section of a symmetric member in pure bending are equivalent toa couple M
  • The moment of the couple is referred to as the bending moment in the section
  • M is positive when the member is loaded as shown

146_bending moment.png              854_bending moment1.png
