Transfer Characteristics

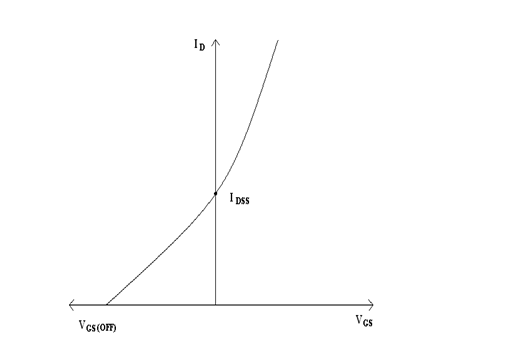

The  transfer characteristics of power MOSFET   transfer characteristic shown the variation of ID with VGS   denote the drain current  with shorted gate and it is not the maximum value of drain current. The  cure extends on both  sides i ,e, VGS.  Can be negative  as well as positive.



1537_Transfer Characteristics.PNG

                                                                        Figure Transfer characteristic
