Question:

a) For the circuits shown in figure a and in figure b, show the output voltage waveform V0(t) if a sinusoidal signal with peak value of 5V is applied and the dc supply voltage, V = 3V. Assume that the diodes are Si with Vd = 0.7 V.

1697_show the output voltage waveform.png

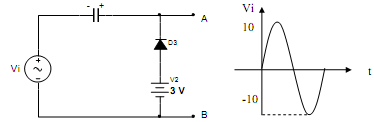

b) For the circuit shown in figure a, state which operation is performed and draw the output waveform if measured between nodes A and B. The input signal is given in figure b and the diode is a Silicon diode.

1022_show the output voltage waveform1.png
