Define Channel Jig

a) A channel jig is the simplest form of box jig.

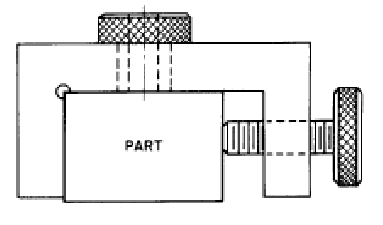

b) The work is placed in a channel shaped trough and clamped by mean of screw.

1065_Channel Jig.png

c) It is utilized in work pieces having simple symmetrical.
