Calculate the information flow index of individual modules, Software Engineering

Assignment Help:

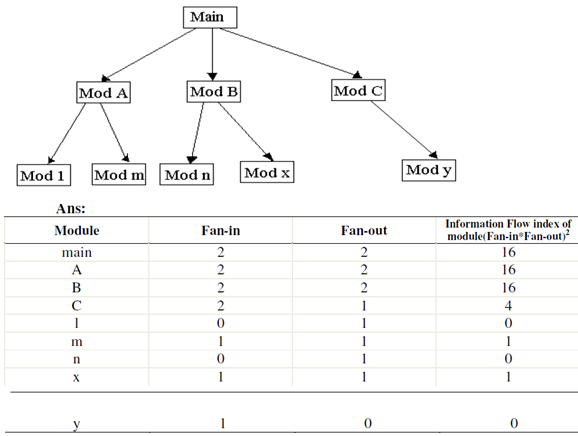

Q. For the structural chart given in fig.1 calculate the Information Flow index of individual modules as well as whole software.

1839_Calculate the Information Flow index of individual modules.png

Total information flow = IF (main) + IF (A) + IF (B) + IF (C) + IF (I) + IF (m)

+ IF (n) + IF (x) + IF (y)

= 16 + 16 + 16 + 4 + 0 + 1 + 0 + 1 + 0

= 54


Related Discussions:- Calculate the information flow index of individual modules

Differentiate between print preview and layout prev, What is the difference...

What is the difference between Print Preview and Layout Preview? Print Preview and Layout Preview When a report is observed in Print preview, it appears almost exactly as it

What are the tools of environmental model, What are the Tools of environme...

What are the Tools of environmental  model (i)  Statement of purpose: It indicates basic objectives of system. (ii)  Event list: It describes different events of system

Answer, write a decision table that specifies the rules for the game of che...

write a decision table that specifies the rules for the game of checkers

What is masm? explain its features, Question 1 What is MASM? Explain its f...

Question 1 What is MASM? Explain its features Question 2 Explain the significance of Lexical analysis and Syntax analysis Question 3 What are macros and macro processors

Define about the requirement traceability matrix, When is RTM (Requirement ...

When is RTM (Requirement traceability matrix) prepared - after or before test case designing? - RTM is prepared before test case designing. - Requirements must be traceable

Give explanation about the software testing strategies, Give explanation ab...

Give explanation about the software testing strategies. A strategic approach to software testing. Verification and Validation. Verification means a set of work o

Explain structural things using conceptual model, Question: Part of the...

Question: Part of the conceptual model of UML is made up of four "things": "Structural things", Behavioral things", "Grouping things" and "Annotational things". Explain, using

Different phases of the rational unified process, Problem: (a) Briefly...

Problem: (a) Briefly explain the different phases and workflows of the Rational Unified Process. (b) What are the two benefits that might be gained when using such a life-c

What is a real time system, What is a Real time system? Real time syste...

What is a Real time system? Real time system is a software system in which the correct functionalities of the system are dependent upon results formed by the system and the tim

Explain iterative enhancement model, Explain Iterative Enhancement model ...

Explain Iterative Enhancement model Iterative Enhancement model: This model incorporates alters in the software based on the analysis of the existing system. Also the complet
