What is the spindle and drill

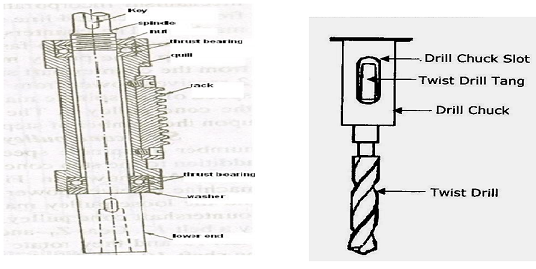

The spindle and drill head assembly the taper hole can be create on radial drilling machine with some special attachment likewise quill(The spindle rotates with in a  non-rotating sleeve).As shown in fig. of spindle and head assembly.
