Define the Effect of Feed

Increase in feed rate deteriorates surface finish. It is observed that a rate of feed in the range from0.12 to 0.15 mm per revolution has a negligible effect on the height (H) of irregularities roughness. As shown in Figure.

1071_Effect of Feed.png

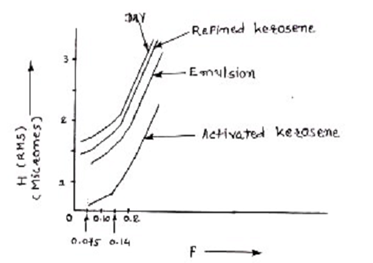

Figure: Graph Showing Effect of Feed on Roughness of metal bar
