What is Plain Concrete Footing?

Plain Concrete Footing:

Footings carrying relatively light loads are constructed with plain concrete. You have already seen a plain concrete footing for a brick wall in demonstrated figure as in below. The required width of the footing in the field is normally achieved by assuming a load dispersion of 45 degree as indicated in demonstrated figure:

910_Plain Concrete Footing for a Brick Wall.png

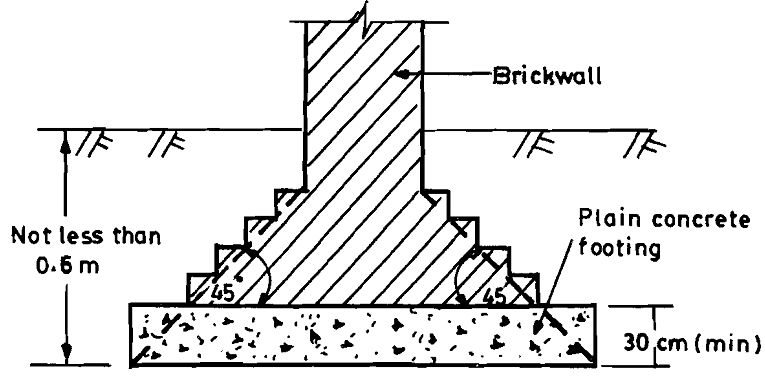

Plain Concrete Footing for a Brick Wall
