What is a decoder, Computer Engineering

Assignment Help:

What is a Decoder ?

Ans.

Decoder: - This decodes the information. The decoders contain n inputs 7 at the end maximum 2n outputs since n bit no can decode max 2n information, here 1 enable input 'E ' is linked to the decoder. If this is high then only the circuit will be enabled and this will function as a decoder. The circuit will be disabled, if 'E' is low.

933_Block diagrams of a decoder.png

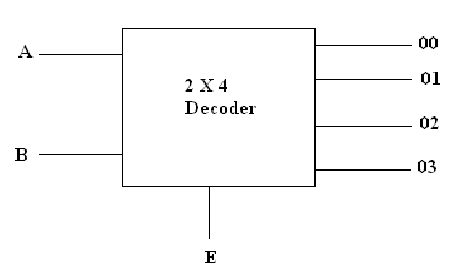

Block diagrams of a decoder
