TWO DIFFERENT KINDS OF TOPOLOGIES:

LOGICAL TOPOLOGY:

 It is described by the specific network technology.

PHYSICL TOPOLOGY:

It relays on the wiring scheme.

NETWORK INTERFACE CARD AND WIRING SCHEMES:

1686_Types OF TOPOLOGIES.png



Figure

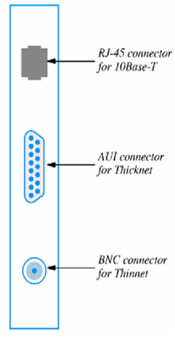

To allow modifying the wiring without modifying the interface hardware, NICs support multiple wiring methods. it is given in the figure below.
