Std "B" 11 m C-BAND EARTH STATION (1982)



This Earth Station is oldest of all. NT started Satellite Communication for International as well as domestic V-Sat connectivity for rural communication, with this system. This is aligned with INTELSAT IOR 64°-East Satellite. Right now only three international carriers are operated on this system. Both the terminal and hub work on C-Band.



Technical Specification of 11 m Antenna Network



Frequency band       : C Band

Antenna Size           : 11 m

Polarization             : Circular

Carrier Size            : IDR (2 Mbps/ Carrier)

G/T                        : 34 Deg/K

SSPA Size               : 200 Watt

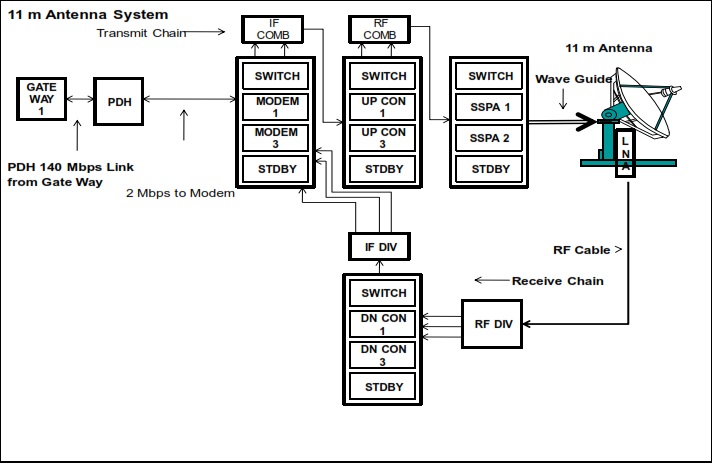

2116_Std “B” 11 m C-BAND EARTH STATION (1982).jpg
