The Linear Dimension Command

                                  2304_The Linear Dimension Command.png

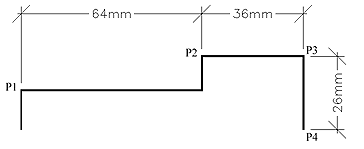

You can use this command to generate horizontal and vertical dimensions.Creating a linear dimension is easy. All you have to do is start the command, specify the two points between which you want the dimension to be drawn and pick a point to fix the position of the dimension line. Consider the diagram (right) whilst working through the following examples.

Command Sequence

                                                                          255_The Linear Dimension Command 1.png
