Tension in the strings:

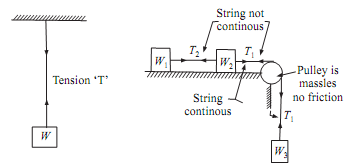

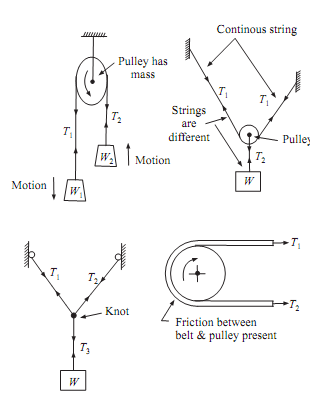

Sol.: When weight is attached to string then it will be in tension. The diagrams are shown below to describe this particular concept.

684_Tension in the strings.png

2469_Tension in the strings1.png
