A design for the seven segment decoder is required.

The decoder has four inputs which represent a number from 0 to 9 in binary and seven outputs which are connected to the seven segment display.

2363_seven segment decoder.png                        845_seven segment decoder1.png

Inputs which represent numbers 10 to 15 never occur so don't care states can be used for the seven outputs.

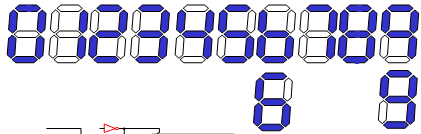

Also the numbers 6 and 9 can be displayed with or without the top/bottom horizontal bar.

919_seven segment decoder2.png
