Scissors Crossing:

A scissors crossing consists of two crossovers overlapping each other. It is shown in Figure.

2429_Scissors Crossing.png

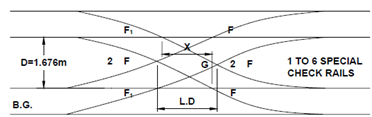

Figure: Scissors Crossover

Triangles

A triangle is intended for turning the engines.
