Influence lines for the force, Mechanical Engineering

Assignment Help:

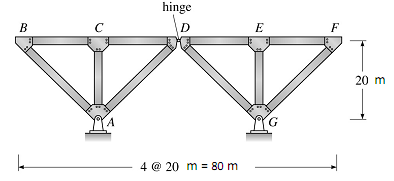

Solve the following two questions of the truss. Note that A and G are pin supports.

1)  Sketch the influence lines for the force in bar DG (the load is moving on the top chord only).

2)  If  the  truss  is  loaded by a uniform dead  load of 4  kN/m over  the whole  length of  the  top

chord, verify the magnitude of the bar forces in members DG.
