Rigid and linearly elastic material:

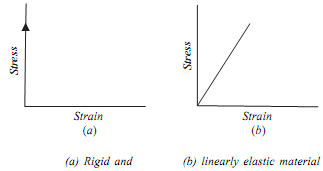

A rigid material is one which is having no strain regardless of the applied stress. A linear elastic material is one in which strain is proportional to stress.

1885_Rigid and linearly elastic material.png
