Real power sources - overview, Electrical Engineering

Assignment Help:

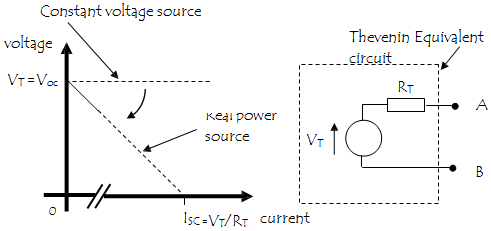

We have seen that a practical power source may be modelled by an ideal constant voltage source in series with a resistor - a Thevenin equivalent circuit

180_real power source.png

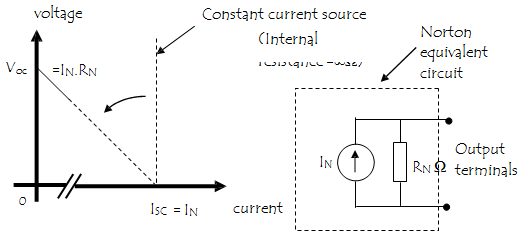

Alternatively, a practical power source may be modelled by an ideal constant current source in parallel with a resistor  - a Norton equivalent circuit.

1113_real power source1.png
