Platforms:

Platforms are places where trains stop and passengers entrain and detrain. For BG operations, the length of the platform should be about 30 m.

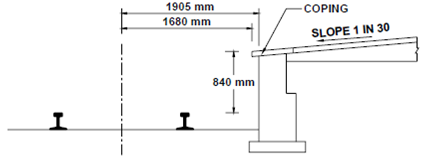

Figure gives the typical cross-section of a platform for a BG track.

602_Platforms - Planning of railway stations.png

Figure : Cross-section of a Platform

The platform should be ramped at a gradient of 1 in 6 at the ends.
