Obtain the closed loop transfer function, Mechanical Engineering

Assignment Help:

Question:

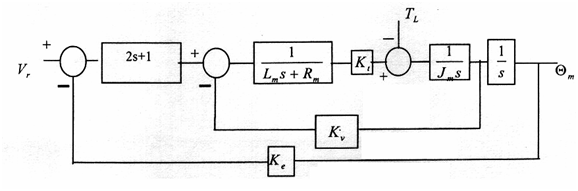

The block diagram of a dc servo motor feed drive is shown



1630_Obtain the closed loop transfer function.png

Obtain the closed loop transfer function relating the output to the disturbance TL while Vr = 0.
