magnitude of the maximum bending moment , Mechanical Engineering

Assignment Help:

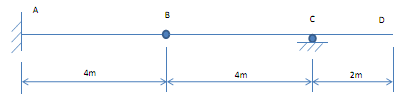

Solve the following three questions of the beam ABCD. Note that A is a fixed end; B is apin connection; C is a roller support; and D is a free end.



1)  Sketch the quantitative influence line for the bending moment at point A;

2)  Verify  the maximum bending moment  that  can be developed at point A  in  the beam  Because of : a concentrated moving load of 4kN and a uniform moving load of 2kN/m;

3)  Sketch  the bending moment diagram  for  the beam ABCD subjected  to  the loading obtained from 2). (The location and magnitude of the maximum bending moment must be determined)
