  Decoders and multiplexers are termed, medium scale integration (MSI) devices; this term implies that the device is complex in construction and usually its operation as well. Below is shown a block diagram of a 2 -> 4 decoder

729_Multiplexers and flip flops.png

The decoder can be thought of as a simple base 10 converter. The binary input's A, B select the base 10 equivalent output, namely O3-> O0. It should be noted that usually the decoder is active low outputs i.e. logic '0' for on and logic '1' for off. Various size decoders are available 2->4, 3->8, 4->16, and 4->10. The operation is made easy by considering the truth table for a 2->4 decoder: -

185_Multiplexers and flip flops1.png


Within logic we also have sequential logic circuits, the building blocks of these MSI devices are flip flops. There are four basic flip flops namely:

            SR Flip flop
            JK Flip flop
            D-type
            T-type

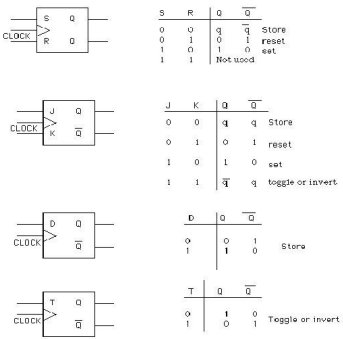

Note the following truth tables shown below are only valid if the clock is active (usually active low).The operation of these devices are simple in that the devices either stores the last value (i.e. doesn't change), resets, sets, or toggles (i.e. output inverts itself).

180_Multiplexers and flip flops2.png



It should be noted that the CMOS and TTL logic families have sequential logic within their families and they usually have asynchronous preset (PR) and clear (CL). Let us consider some simple applications of sequential logic.
