Micro programmed control and hardwired control, Computer Engineering

Assignment Help:

Explain micro programmed control.

Ans: A micro programmed control unit is made around storage till is called a control store where all the control signals are stored in a program such as format. The control store stores a set of micro programs designed to implement the behavior of the given instruction set.

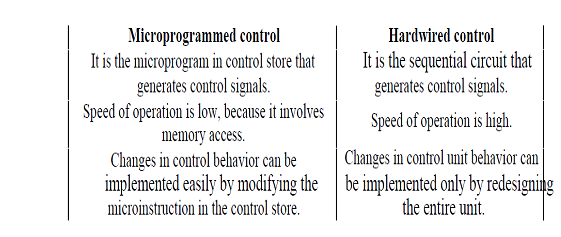

Give the difference between Micro programmed control and hardwired control.

1519_Micro programmed control and hardwired control.png

Describe MFC?

Ans: To accommodate the variability in response time, the processor waits till it

retain an indication that the requested read operation has been completed. It is accomplished by a control signal which is called Memory - Function - Completed.
