Marshalling Yard:

Function

The marshalling yard is a facility where goods wagons are sorted out for being dispatched to different stations. After being sorted out, they are formed into trains.

Layout

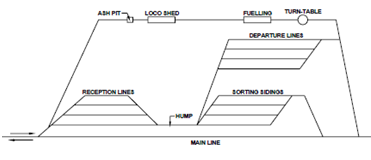

A typical layout for a marshalling yard is given in Figure.

585_Marshalling Yard.png

Figure: A Typical Marshalling Yard

Cargo Handling Facilities

Loading and unloading of small parcels into/from wagons can be done by fork lifts, which can also transfer them from one place to another.

Large containers are handled by cranes.

Loading of vehicles is facilitated by a loading ramp (Figure).

388_Marshalling Yard1.png

Figure : Loading Ramp
