Q. Linear and position invariant?

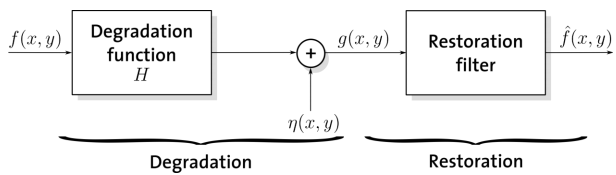

Assume that the model illustrated below is linear and position invariant. Also the noise and the image are uncorrelated.

Show that the power spectrum of the output is

1832_Linear and position invariant.png
