Interlaminar shear strength , Other Engineering

Assignment Help:

Composites have low shear strengths compared to longitudinal strengths. The ILSS test is a simple 3 point bend test, requiring a small amount of material.

A span to depth ratio of 4 : 1 is used and no pre-crack is required.

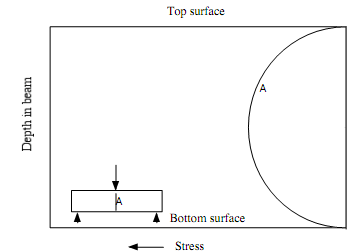

When loaded, a parabolic distribution of shear stresses is set up reaching a maximum at the mid-plane.

1210_Interlaminar Shear Strength.png
