Hybrid Model for Two-port Network:-

            V1 = h11 i1 + h12 V2

           I2 = h1 i1 + h22 V2

                         ↓

              V1 = h1 i1 + hr V2

                I2 = hf i1 + h0 V2

1042_Hybrid Model for Two-port Network.png

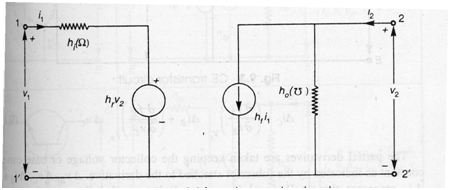

Figure: The Hybrid Model for Two-port Network
