Q. In a hundred-line exchange 24 two-motion selectors are used. Draw schematic you suggest for this exchange and illustrate its working. How many simultaneous calls can be made during peak hour in this exchange?
Ans:

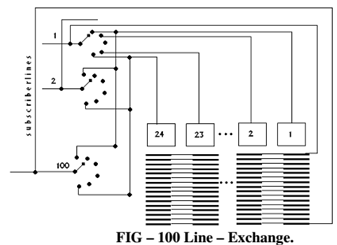

Desired schematic for 100 lines exchange with 24 two motion selectors is displayed in Figure.
In the case, 24 simultaneous calls can be put through the switch .Characteristically a 24-outlet Uni-selector is used as a selector hunter. Each of 24 outlets is connected to one two-motion selector. Hence a subscriber has access to all 24 two-motion selectors in the system. Corresponding outlets of all the selector hunters are commoned and So all subscribers have access to all two-motion selectors. This scheme is displayed in Figure. Call establishment in this scheme occurs in two steps. Firstly, when subscriber lifts his receiver handset, his Uni-selector hunts through contact positions and seizes a free two-motion selector. At thesubsequent step, two-motion selector responds to dial pulses for appropriate connection.
Q. Show Common signal-processing operations? Common signal-processing operations include the following: • Amplification to compensate for attenuation • Filtering to reduc
Q. The voltage across a parallel combination of a 100- resistor and a 0.1-µF capacitor is 10 cos(5000t +30°) V. Determine the admittance of the parallel combination and find the c
What is USB? USB: The USB (UNIVERSAL SERIAL BUS) is intended to join peripheral devices as keyboards, modems, a mouse and sound cards to the microprocessor by a serial data pat
Q. Consider the circuit shown in Figure in the time domain aswell as in the s-domain. Its transfer function V 2 (s)/V 1 (s) can be shown to be which is a second-order bandpass tra
Thermal considerations: At continuous current, the voltage across the emitter-base junction V BE of a bipolar transistor get decreases 2 mV (silicon) and 1.8mV (germanium) fo
Q. (a) An audio amplifier with R i = 10 k, R o = 0, and ¯A(ω), as shown in Figure (a), is used in the circuit shown in Figure with R S = 1 k,R L = 16 , and C = 0.2 µF. Sk
1. Calculate the combined resistance of three resistors connected in series with resistance of 20 ohm, 30 ohm and 40 ohm? (to achieve a pass grade, solve problems with resisto
'Electrical drives' is a general term that is commonly used to describe both DC and AC excited motors that provide continuous rotary motion, whilst 'electrical actuators' provide l
Q. Show DC Generator Characteristics? Figure shows schematic diagrams of field-circuit connections for dc machines without including commutating pole or compensating windings.
Name the various magnetically hard alloys. Several of the magnetically hard materials are rare earth carbon steel, cobalt, tungsten steel, alnico, hard ferrites and cobalt stee
