Give a simple example of dynamic modelling, Computer Engineering

Assignment Help:

Give a simple example of dynamic modelling using these notation

A simple example using these notation is shown below in Figure:

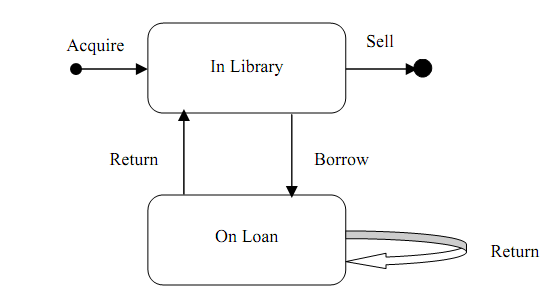

1813_data modelling.png

                                                                             Figure: A simple State Diagram



States can be seen as composite states i.e. a group of states treated as one state at a higher level while analysis.  In the illustration above, state "In Library" is actually composed of a sequence of sub-states that library staff, if not borrowers will need to know about.

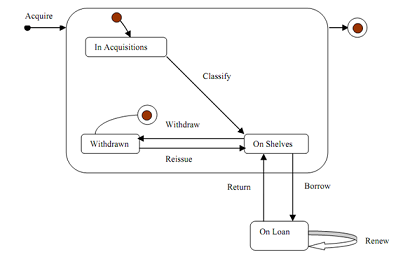

2437_data modelling.png

                     Figure: Composite States
